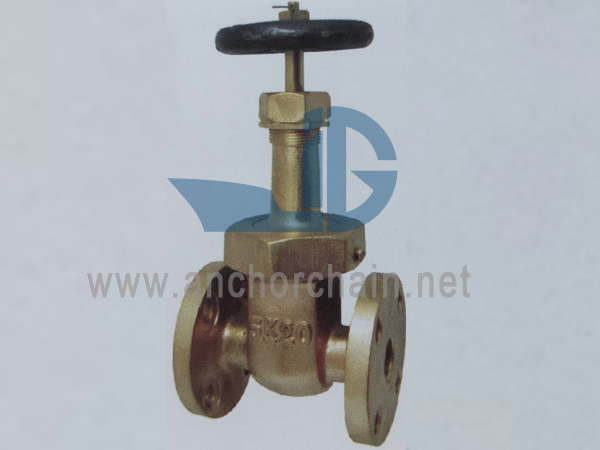

JIS F 7368 Bronze 10K Rising Stem Type Gate Valves
Product Description
JIS F 7368 Bronze 10K Rising Stem Type Gate ValvesCategory:JIS Marine Gate ValveMaterial:BronzeStandards:JIS F7368Certificate:CCS,BV,GL,NK,RINA,ABS,DNV,LRFob Price:Get Latest Price NowPlace of Origin:China
Product Detail
JIS F 7368 Bronze 10K Rising Stem Type Gate Valves
Category:JIS Marine Gate Valve
Material:Bronze
Standards:JIS F7368
Certificate:CCS,BV,GL,NK,RINA,ABS,DNV,LR
Fob Price:Get Latest Price Now
Category:JIS Marine Gate Valve
Material:Bronze
Standards:JIS F7368
Certificate:CCS,BV,GL,NK,RINA,ABS,DNV,LR
Fob Price:Get Latest Price Now
Place of Origin:China
China Marine Bronze Gate Valve JIS F7368 10K:
Design Standard: JIS F7368-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 2.1Mpa, Seat-1.54Mpa
Flange size as per JIS B2220 - 10K
Main Material:
Body: Bronze (BC6)
Bonnet: Bronze (BC6)
Disc: Bronze (BC6)
Stem: Brass (C3771BD)
Gasket: non-asbestos
Main Size List(mm):
| IMPA CODE | Size | L | D | C | No of Bolt Hole | h | t | H | D2 |
| 750961 | 15 | 100 | 95 | 70 | 4 | 15 | 12 | 175 | 80 |
| 750962 | 20 | 110 | 100 | 75 | 4 | 15 | 14 | 200 | 100 |
| 750963 | 25 | 120 | 125 | 90 | 4 | 19 | 14 | 220 | 125 |
| 750964 | 32 | 140 | 135 | 100 | 4 | 19 | 16 | 250 | 125 |
| 750965 | 40 | 150 | 140 | 105 | 4 | 19 | 18 | 290 | 140 |
